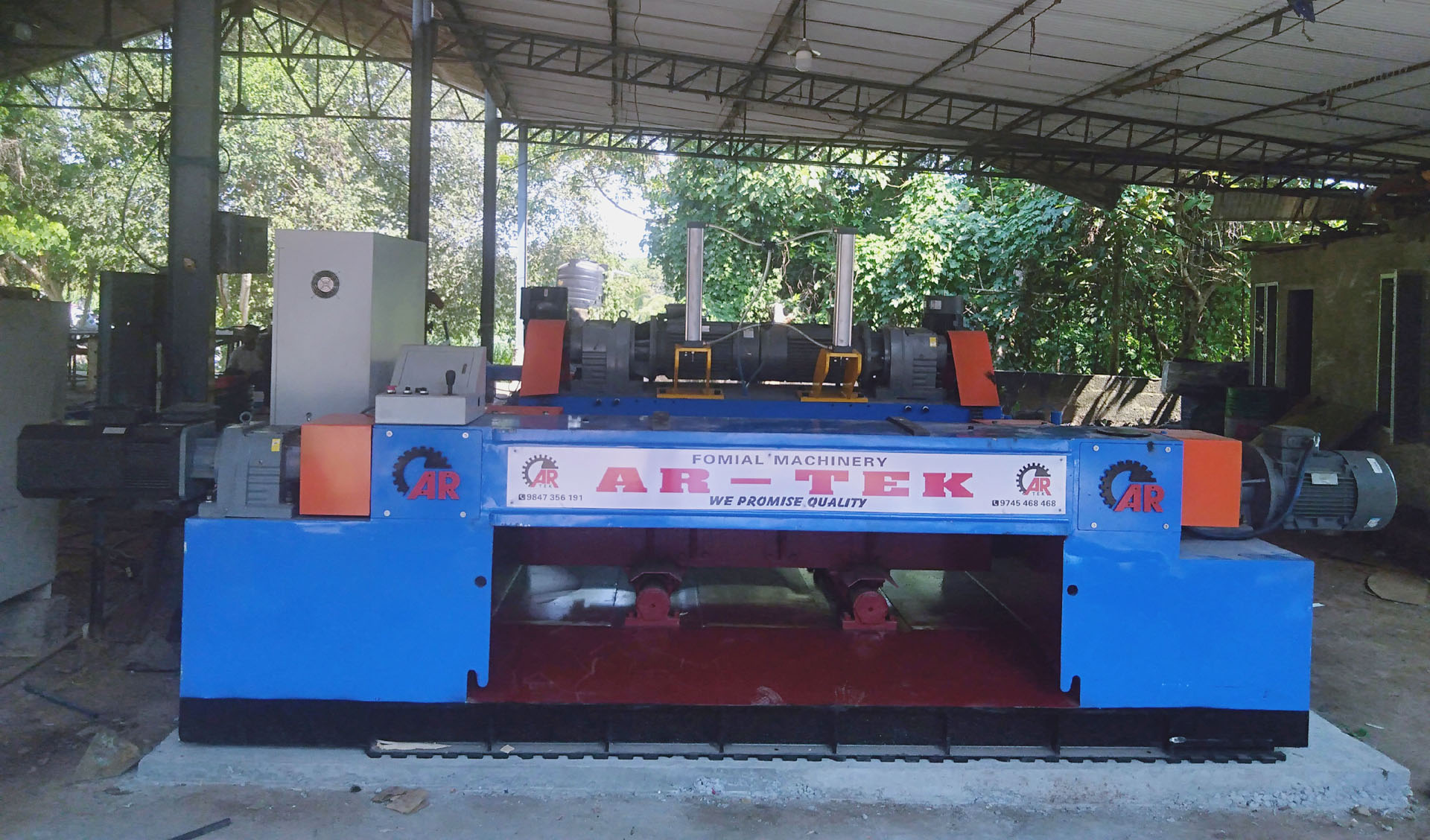

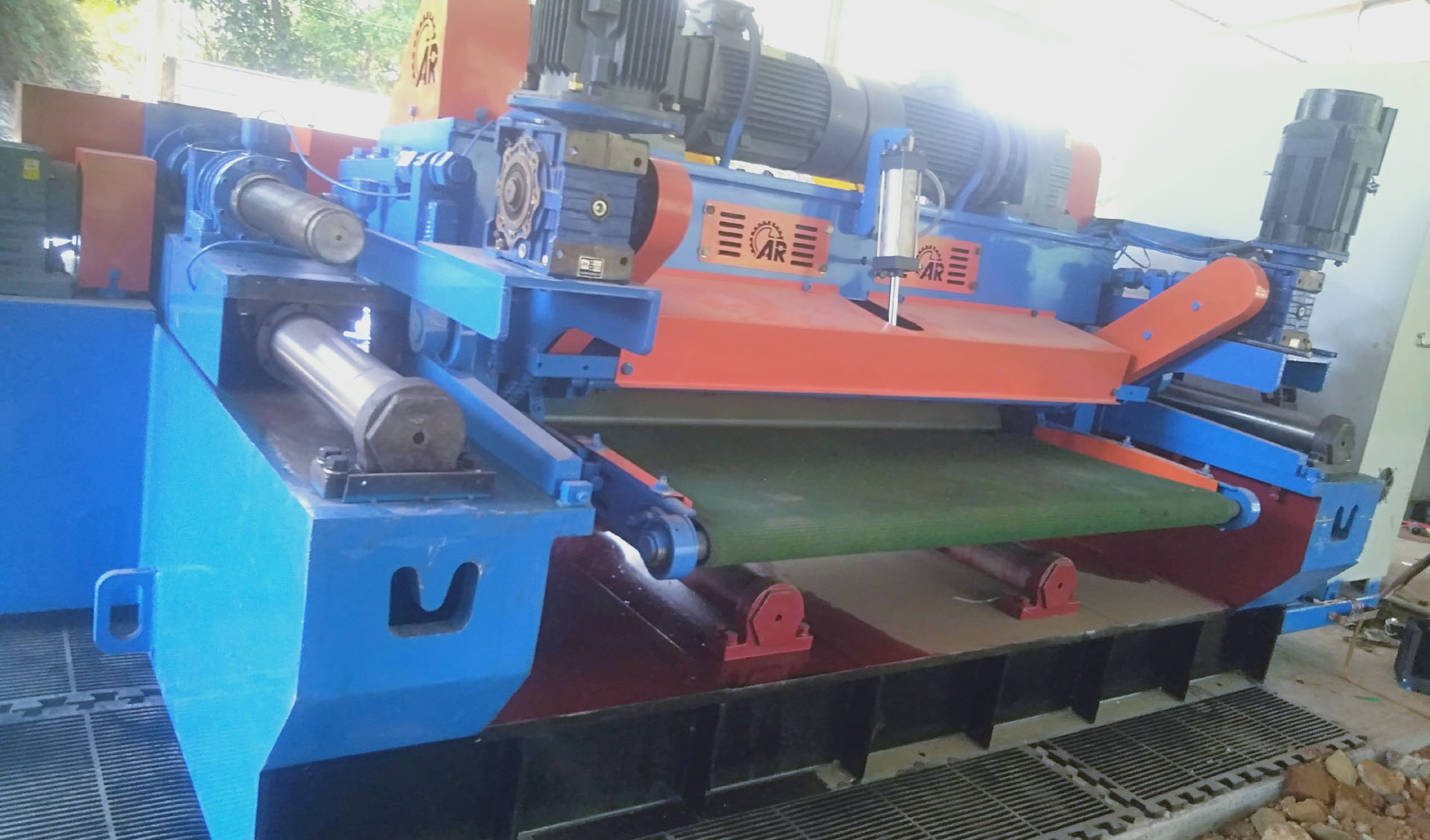

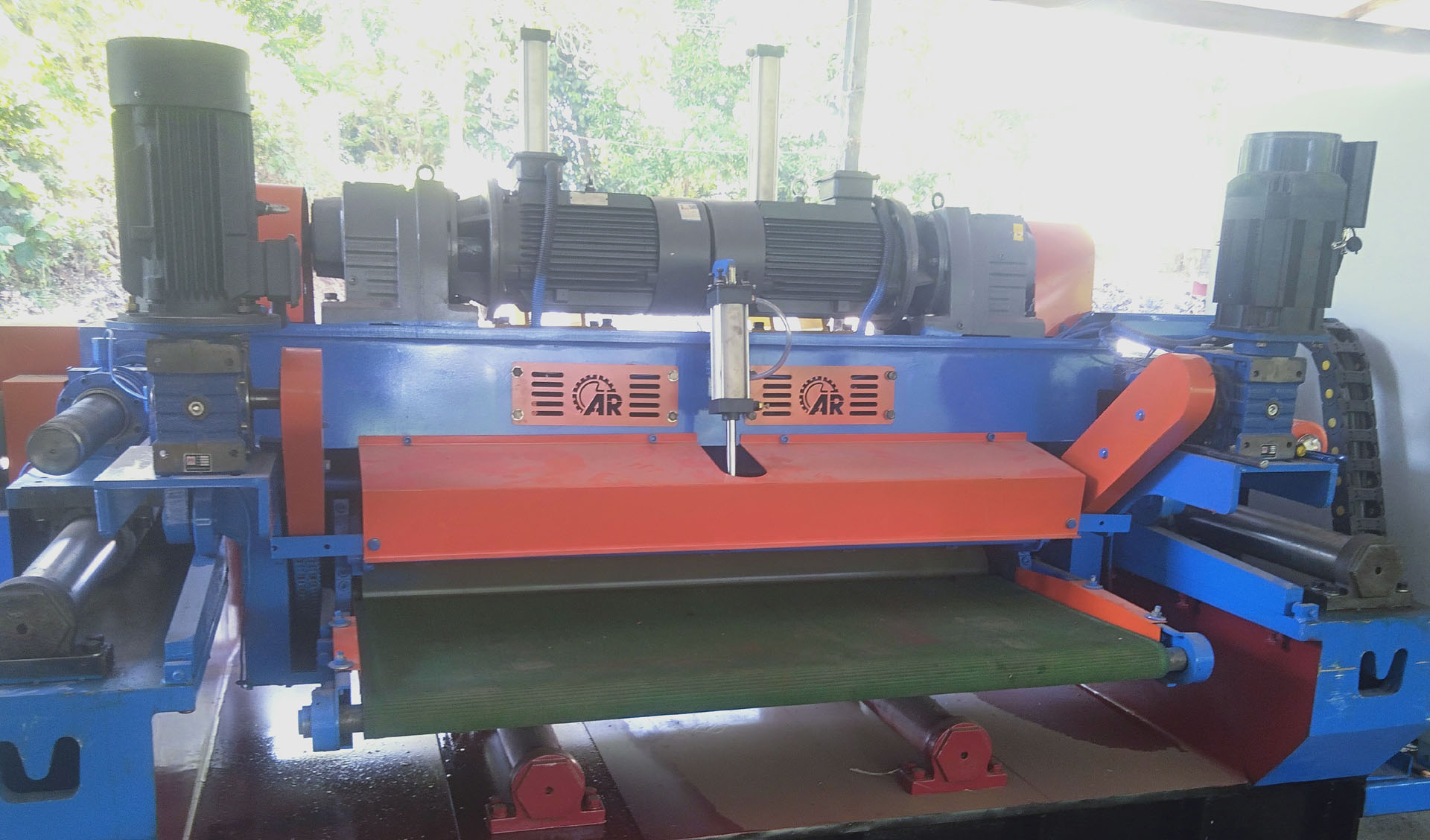

75 HP High speed peeling
| MAX. LOG DIAMETER | 500mm |
|---|---|
| MAX. LOG LEGNTH | 1500mm |
| LAST CORE DIAMETER | 24mm |
| VENEER THICKNESS | 0.8-4mm |
| PEELING KNIFE SIZE | 1500*180*16mm |
| SINGLE ROLLER MOTOR | 7.5 KW * 2 |
| DOUBLE ROLLER MOTOR | 11 KW * 2 |
| CLIPPER MOTOR | 4 KW SERVO |
| FEEDING MOTOR | 11 KW SERVO |
| TOTAL POWER | 56.4 KW SERVO |
| SPEED | 30 M 80 M |
| WEIGHT | 7000 KGs |
| CONVEYOR LENGTH | 7 METER |
