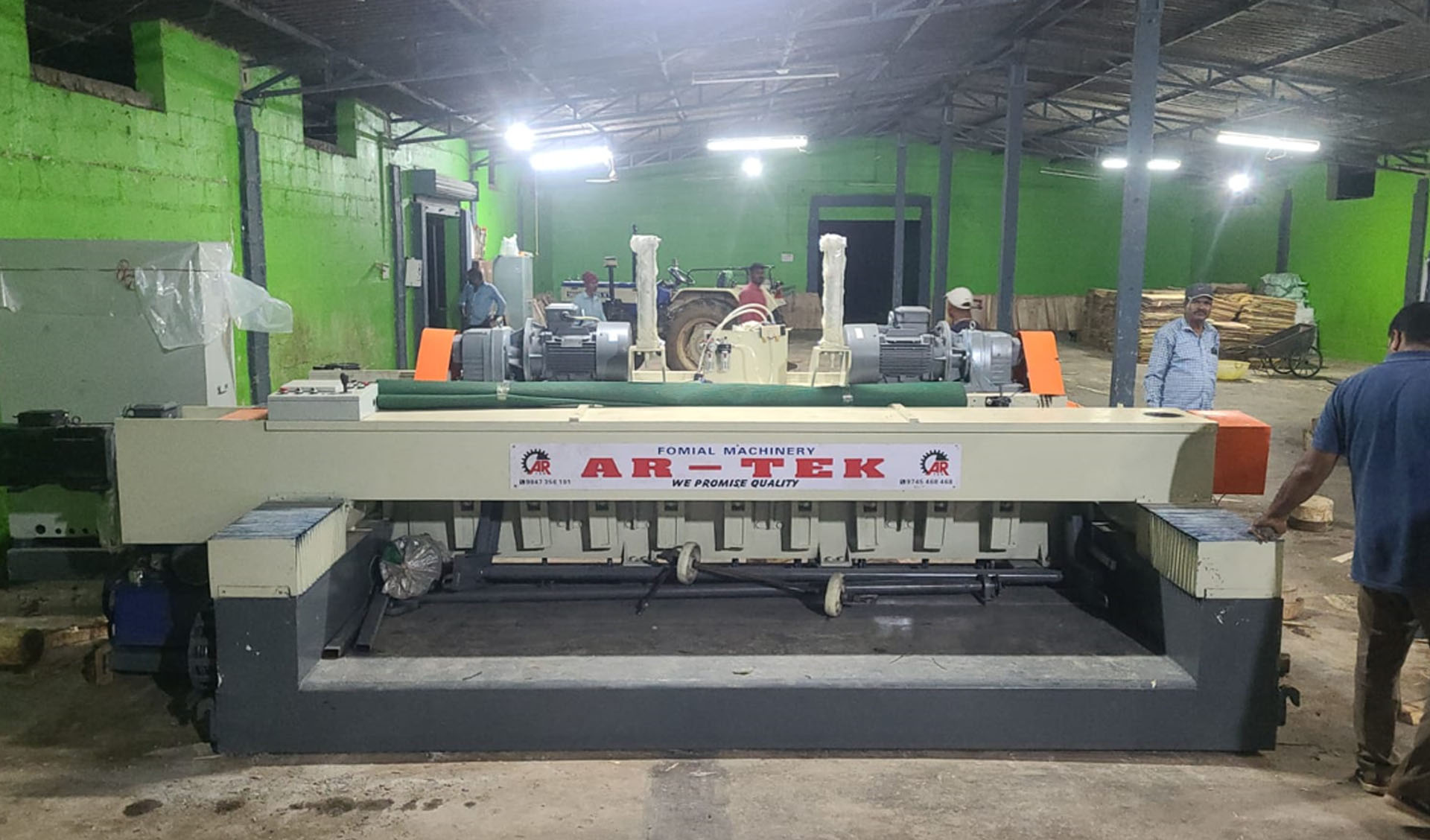

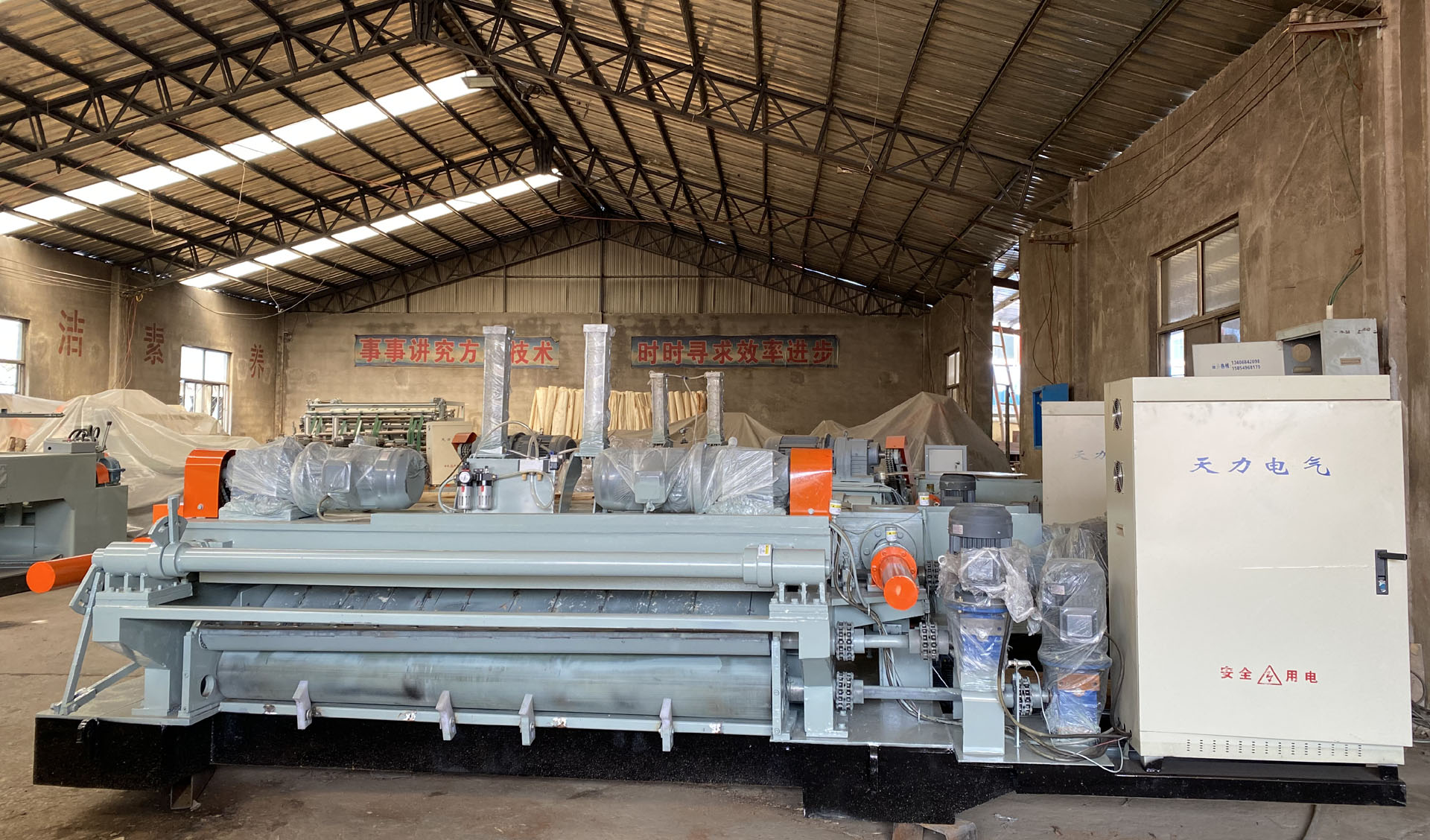

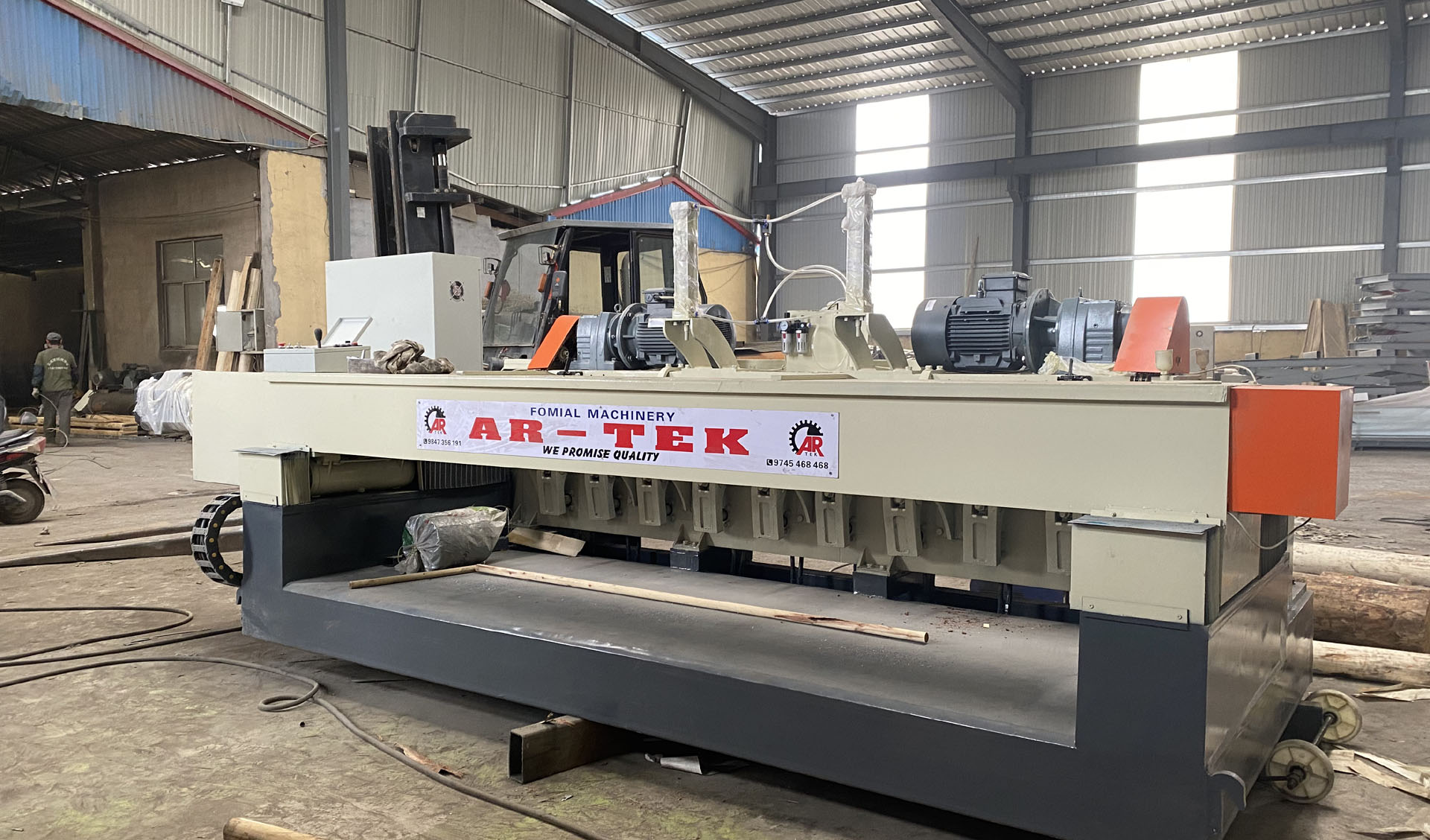

8 FEET fACE VENEER PEELING (60 HP DETAILS)
| MAX. LOG DIAMETER | 550mm |
|---|---|
| MAX. LOG LEGNTH | 2600mm |
| LAST CORE DIAMETER | 35mm |
| VENEER THICKNESS | 0.2-1.8mm |
| PEELING KNIFE SIZE | 2600*180*16mm |
| SINGLE ROLLER MOTOR | 11 KW * 2 |
| DOUBLE ROLLER MOTOR | 11 KW |
| CLIPPER MOTOR | 4.2 KW SERVO |
| FEEDING MOTOR | 15 KW SERVO |
| TOTAL POWER | 62.4 KW |
| SPEED | 20 M 80 M |
| WEIGHT | 8500 KGs |
| CONVEYOR LENGTH | 6 METER |
