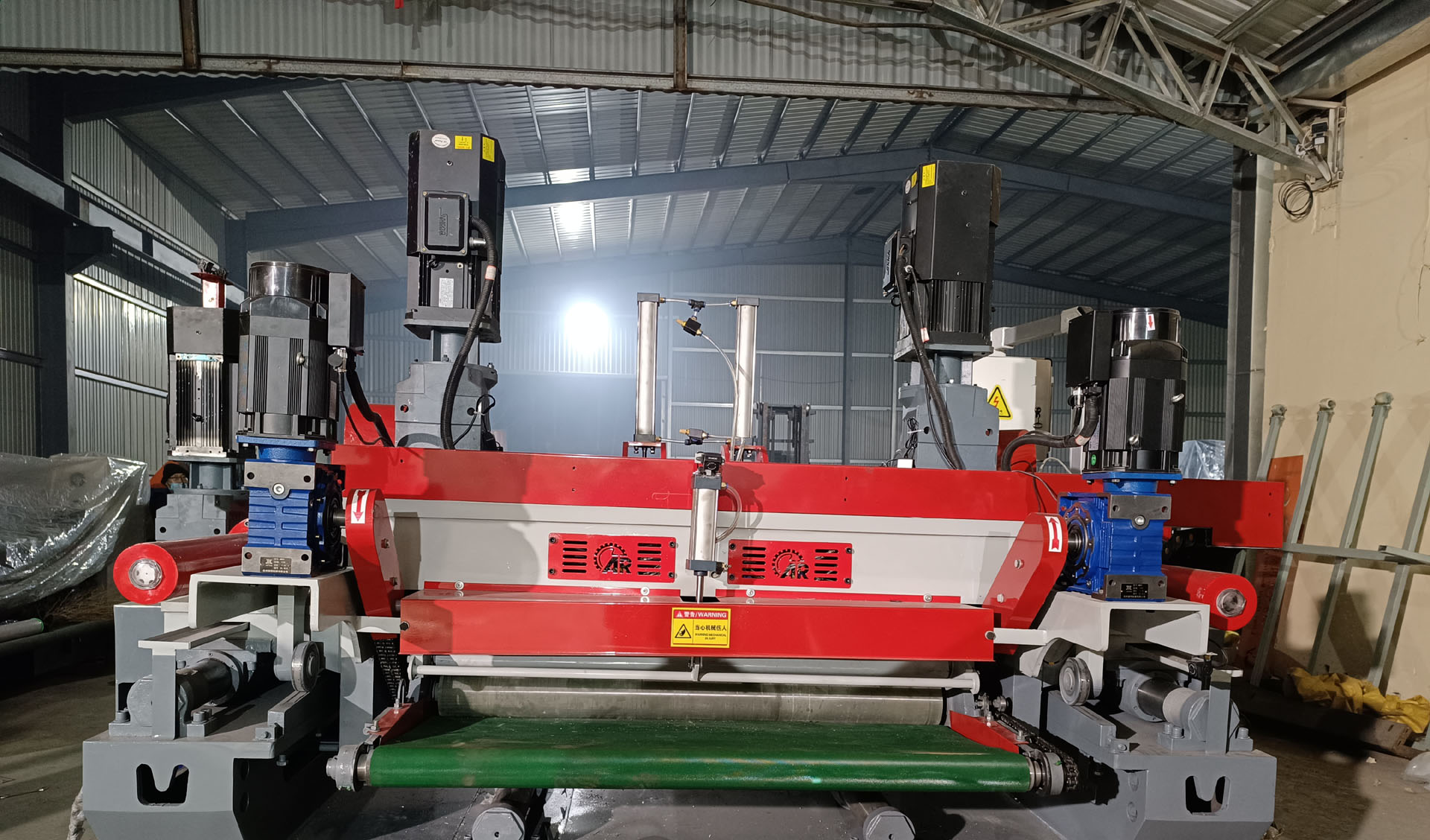

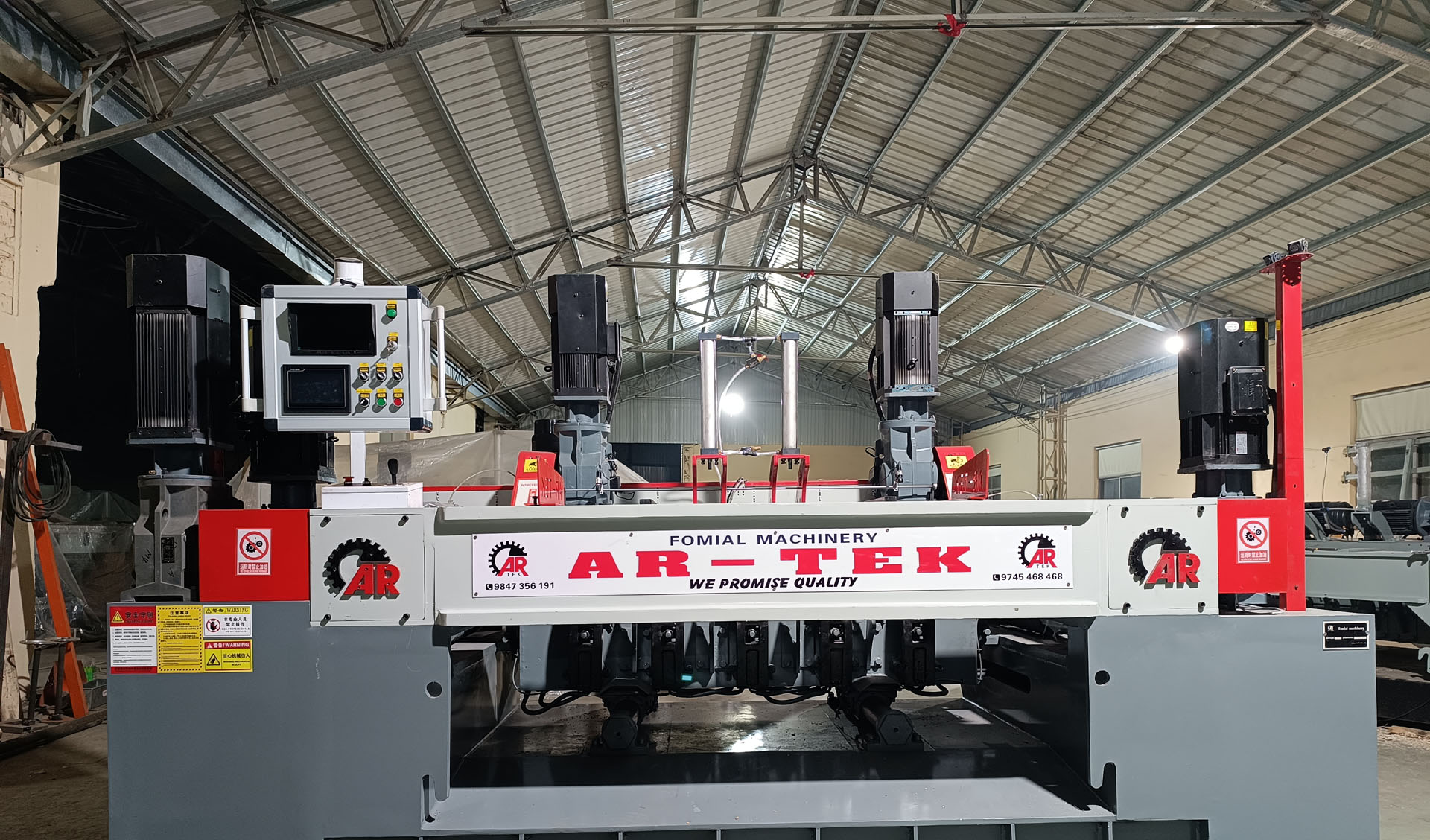

90 HP heavy duty model
| MAX. LOG DIAMETER | 550mm |
|---|---|
| MAX. LOG LEGNTH | 1500mm |
| LAST CORE DIAMETER | 27mm |
| VENEER THICKNESS | 0.8-4mm |
| PEELING KNIFE SIZE | 1500*180*16mm |
| SINGLE ROLLER MOTOR | 11 KW * 2 |
| DOUBLE ROLLER MOTOR | 11 KW * 2 |
| CLIPPER MOTOR | 4 KW |
| FEEDING MOTOR | 15 KW |
| TOTAL POWER | 67.4 KW |
| SPEED | 30 M 150 M |
| WEIGHT | 9000 KGs |
| CONVEYOR LENGTH | 8 METER |
